Coding Board Firmware Upgrade
Online Upgrade
Preparation
Software Preparation
Upgrade website: https://update.icrobot.cn/
(Recommended browsers: Chrome or Microsoft Edge)Hardware Preparation
|
|
|
|---|---|---|

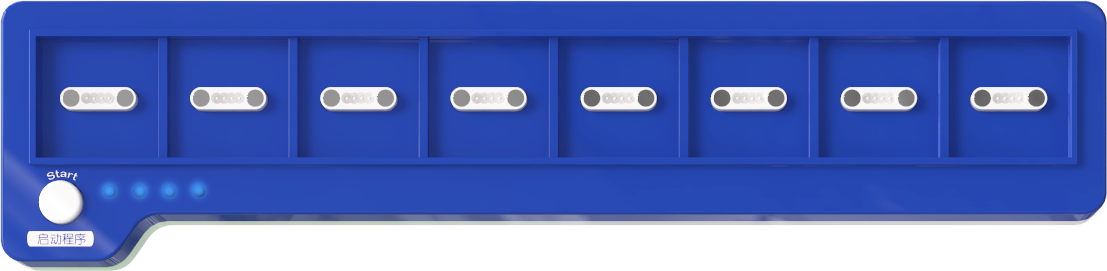

KIDZBlocks Coding Board x1 |

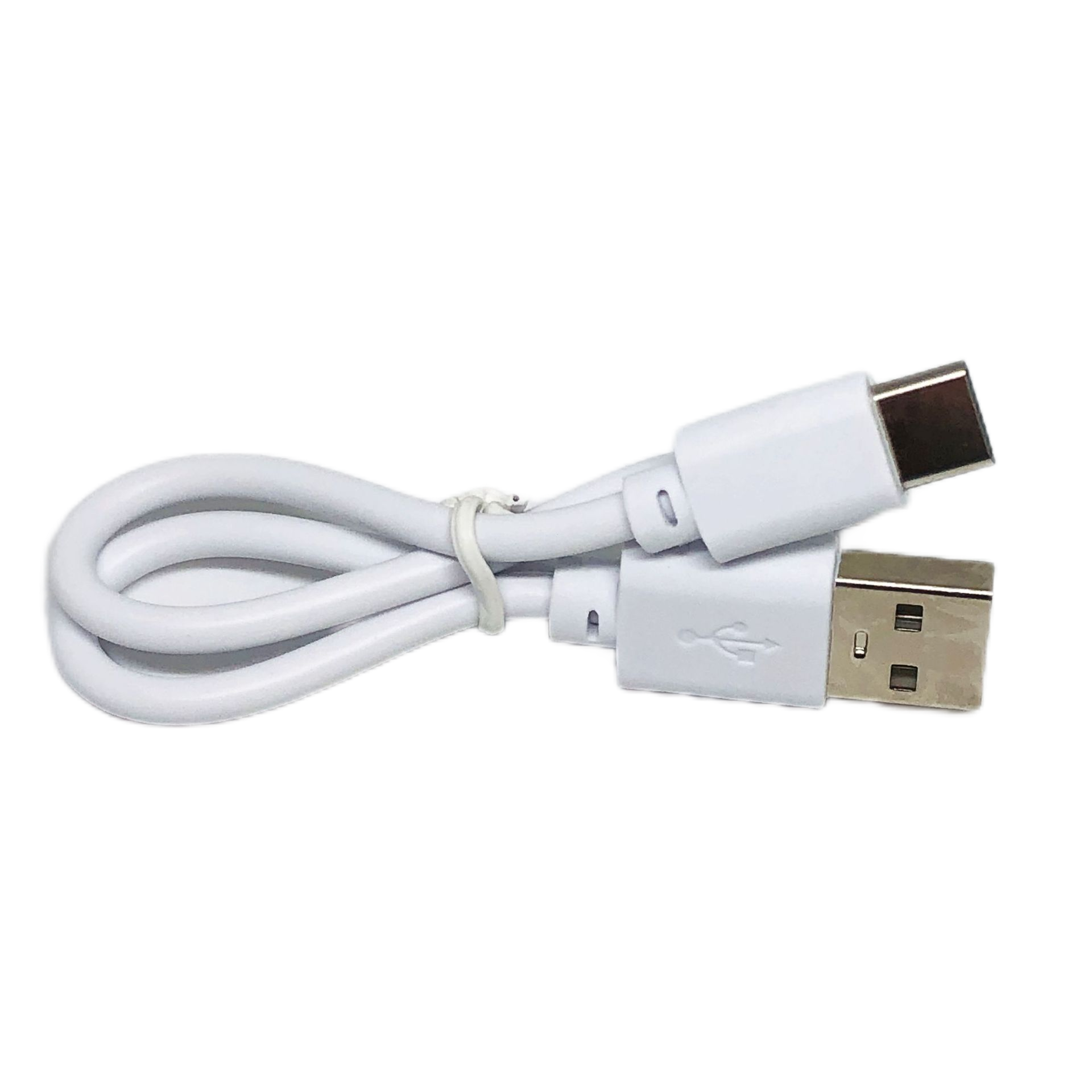

USB-C Data Cables x2 |

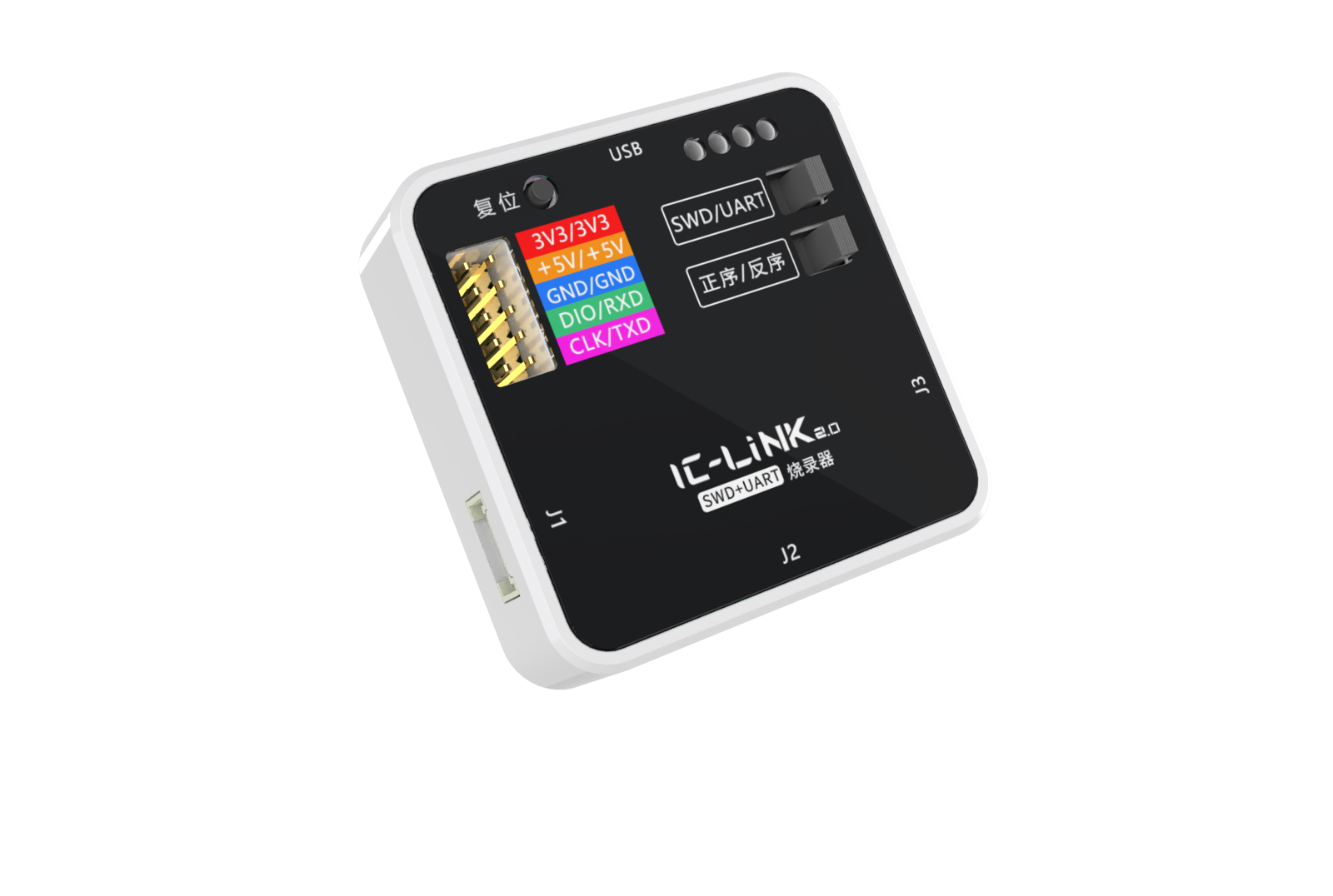

KIDZLink 2.0 Upgrade Tool x1 |
Upgrade Steps
|
|
|---|---|

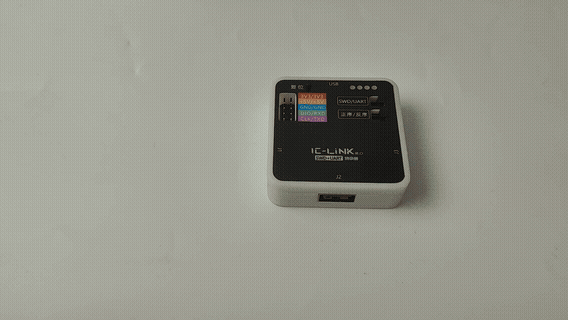

① Toggle the switch on the KIDZLink 2.0 to the SWD/Forward position. |

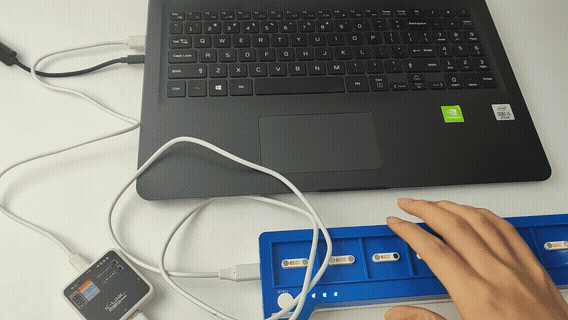

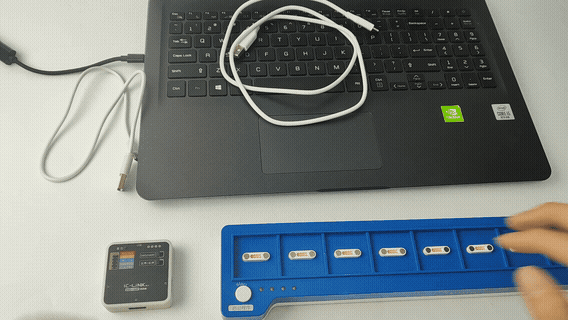

② Connect the KIDZLink 2.0 to the KIDZBlocks coding board using one USB-C cable, then connect the KIDZLink 2.0 to your PC via USB using the second USB-C cable. |
|
|
③ Once connected, the coding board’s indicator light will show a charging status. |

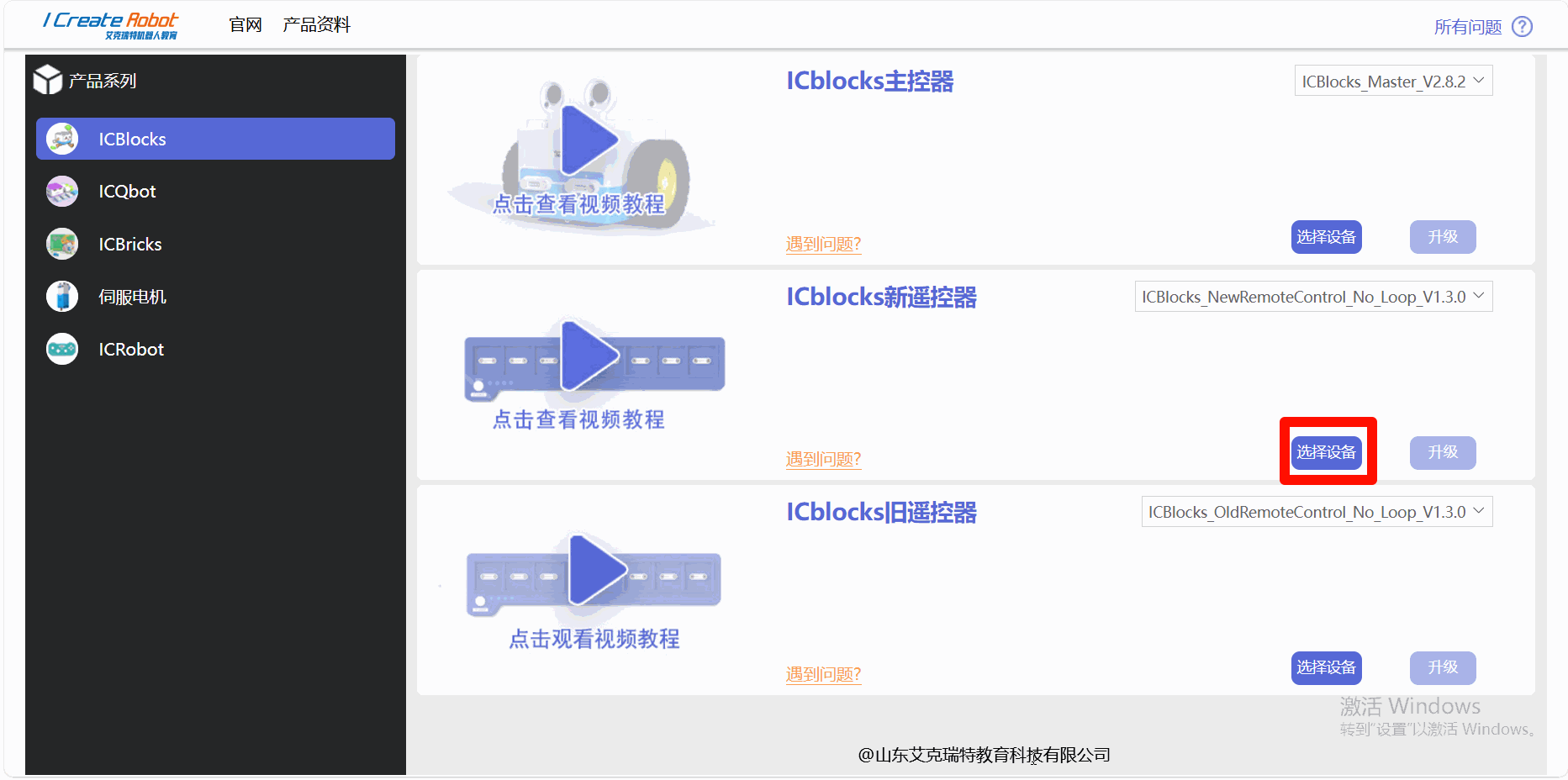

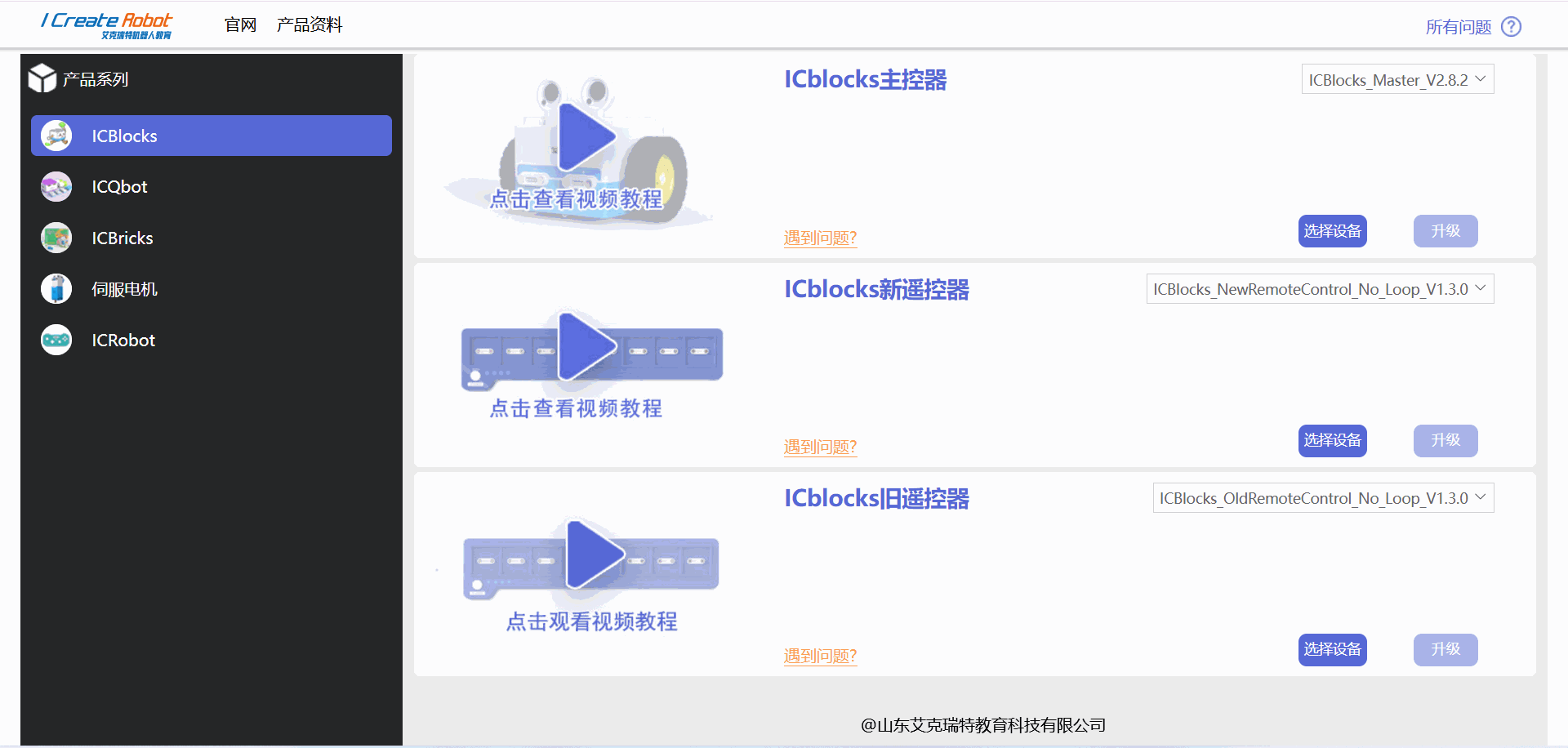

④ Open the firmware upgrade platform in Chrome or Microsoft Edge, and select the KIDZBlocks Series from the left panel. |
|
|
⑤ Locate the KIDZBlocks Coding Board on the right panel. Expand the dropdown list to view available firmware upgrades. |
⑥ Choose the desired firmware version and click Upgrade. |
|
|
⑦ Wait for the page to display “Upgrade Successful.” Observe the blue indicator light on the KIDZLink 2.0 for confirmation of completion. |

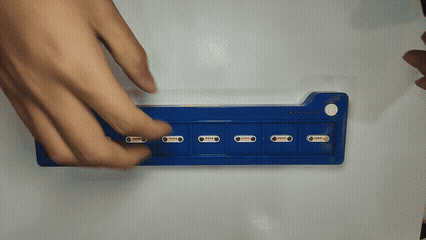

⑧ Power on the upgraded coding board by pressing the Start and Power buttons. |
|
|

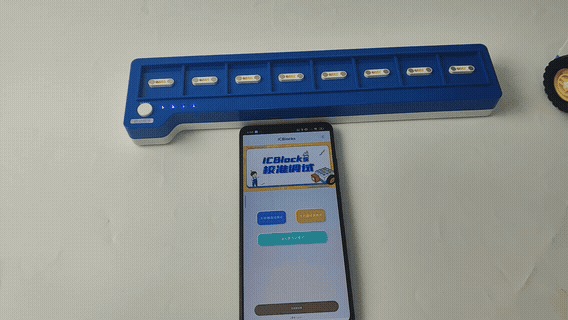

⑨ Connect the Coding Board to the KIDZBlocks Calibration and Debugging Tool. |

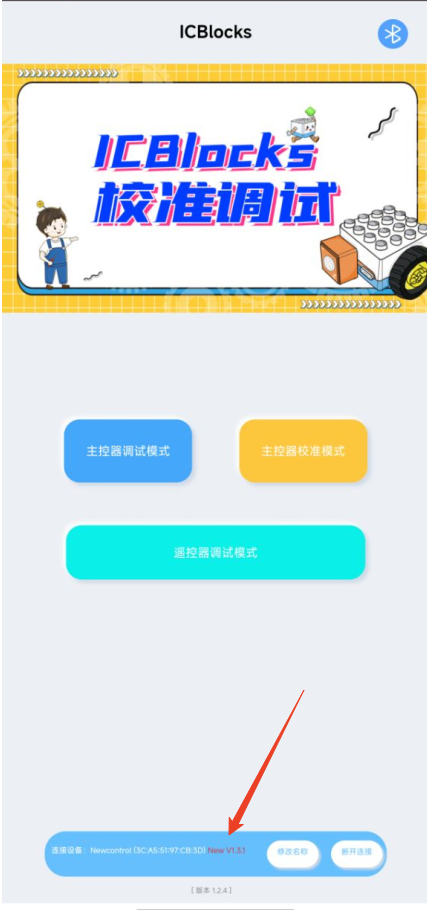

⑩ On the Home Interface of the software, check the device connection status at the bottom to verify the firmware version. Firmware versions below 1.3.1 do |
