Boxy Robot Firmware Upgrade
Online Upgrade
Preparation
Upgrade website: https://update.icrobot.cn/
(Recommended browsers: Chrome or Microsoft Edge)Hardware Preparation
|
|
|
|---|---|---|

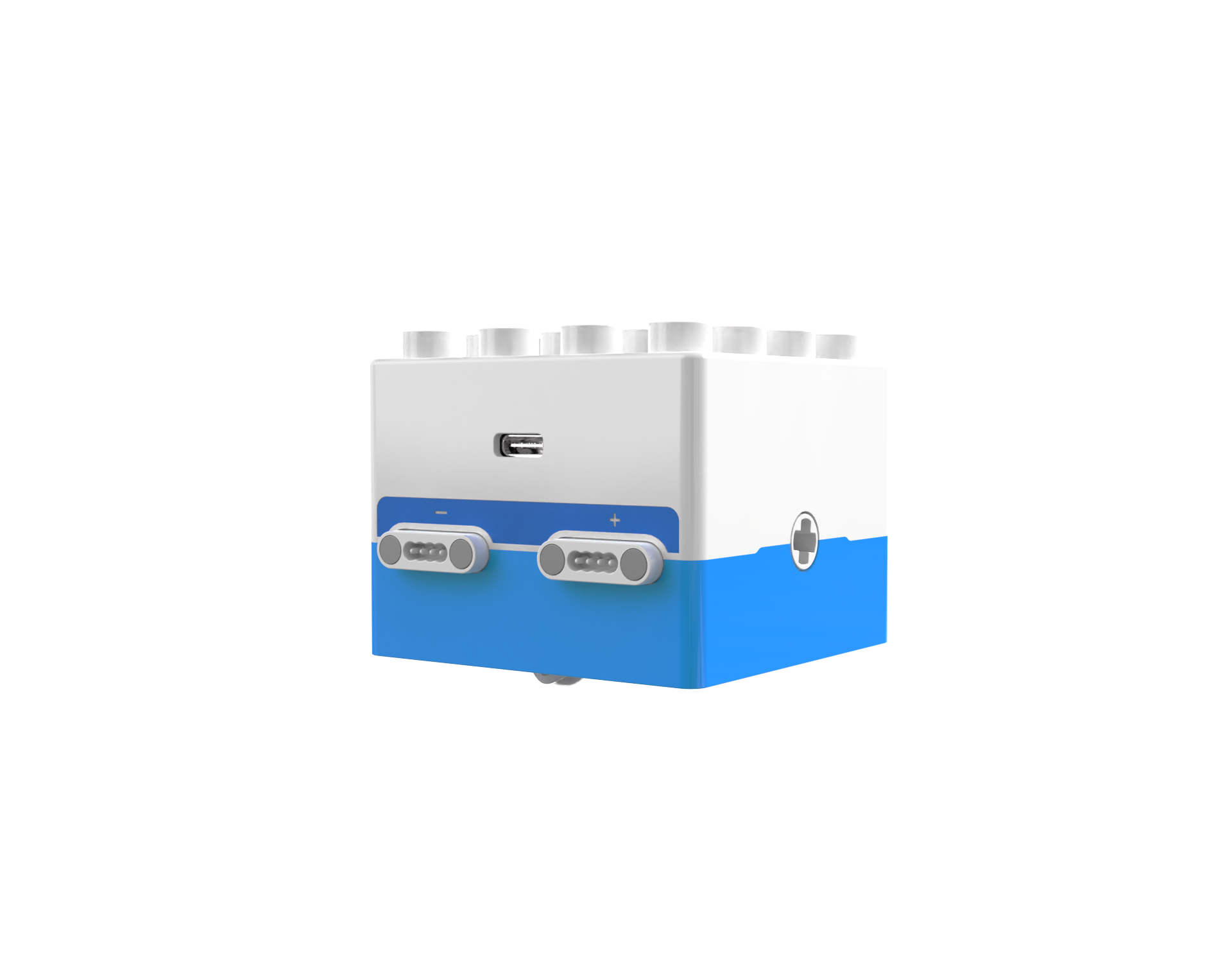

KIDZBlocks Boxy Robot x1 |

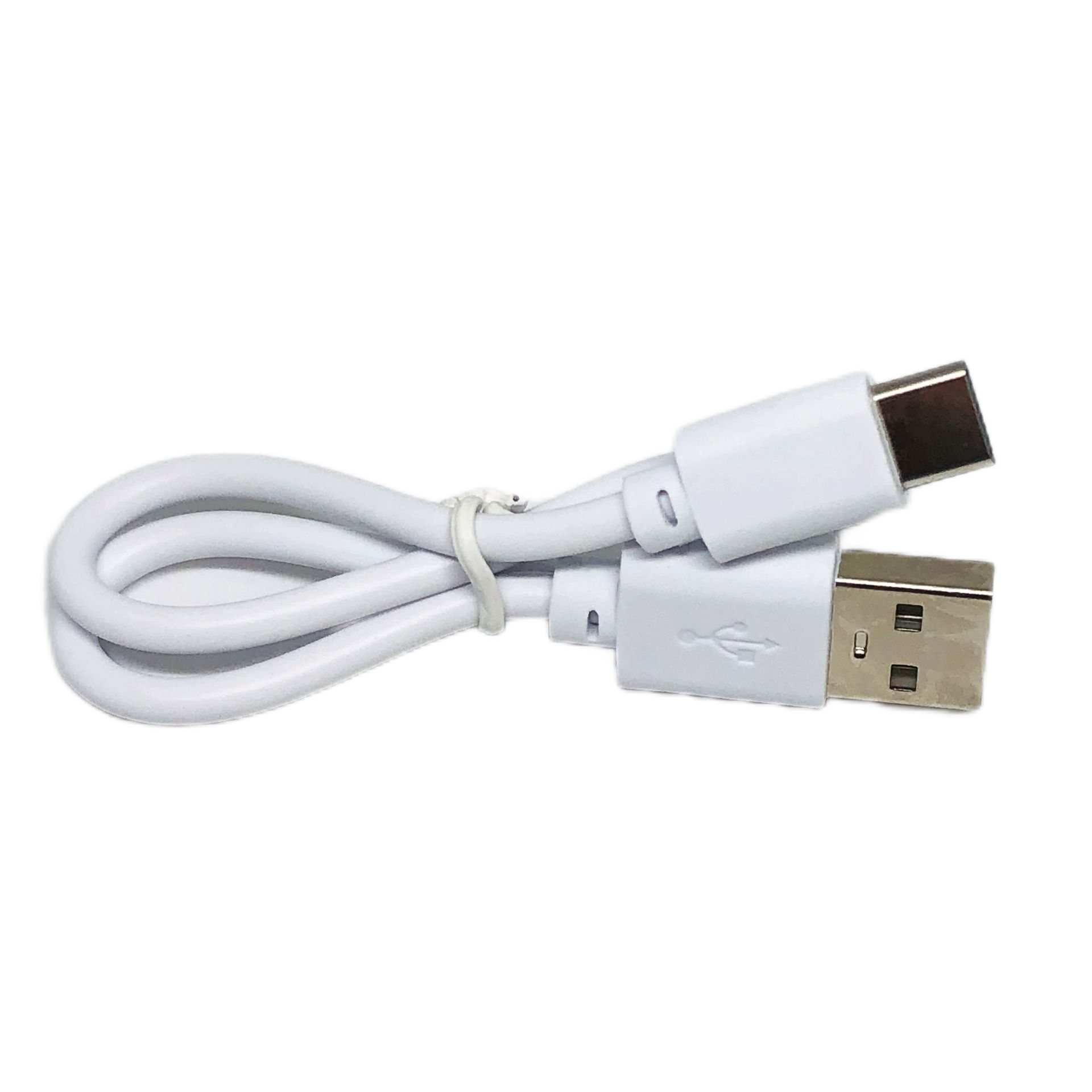

USB-C Data Cables x2 |

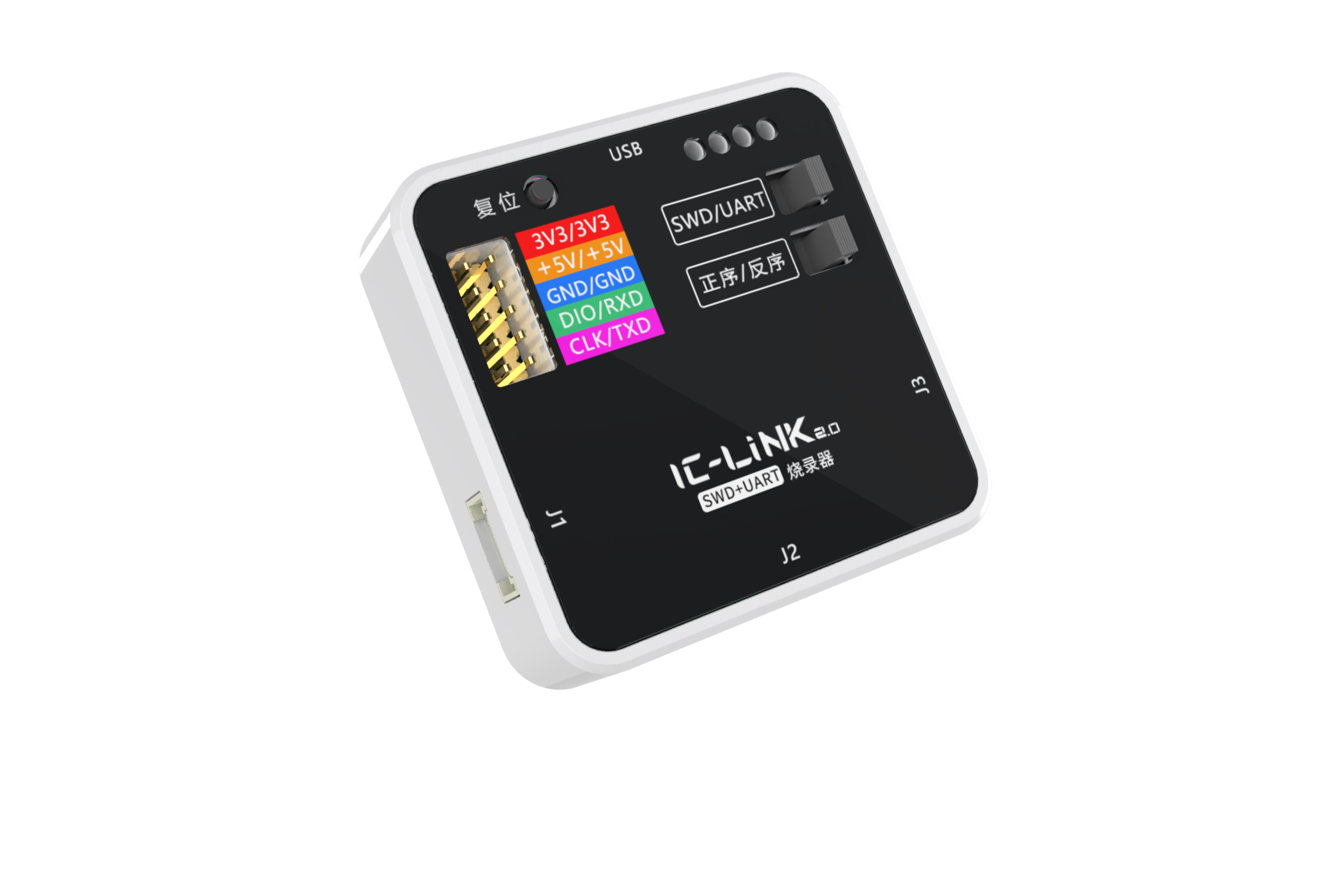

KIDZLink 2.0 Upgrade Tool x1 |
Upgrade Steps
|
|
|---|---|

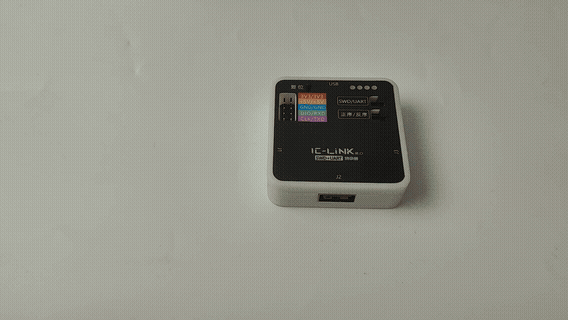

① Toggle the switch on the KIDZLink 2.0 to the SWD/Forward position. |

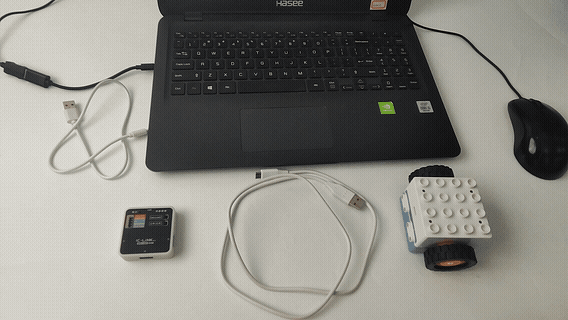

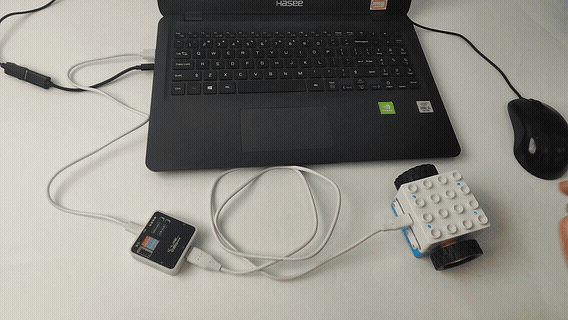

② Connect the KIDZLink 2.0 to the Boxy Robot using one Type-C cable, then connect the KIDZLink 2.0 to your PC via USB using the second USB-C cable. |
|
|
③ Once connected, the Boxy Robot’s indicator light will show a charging status. |

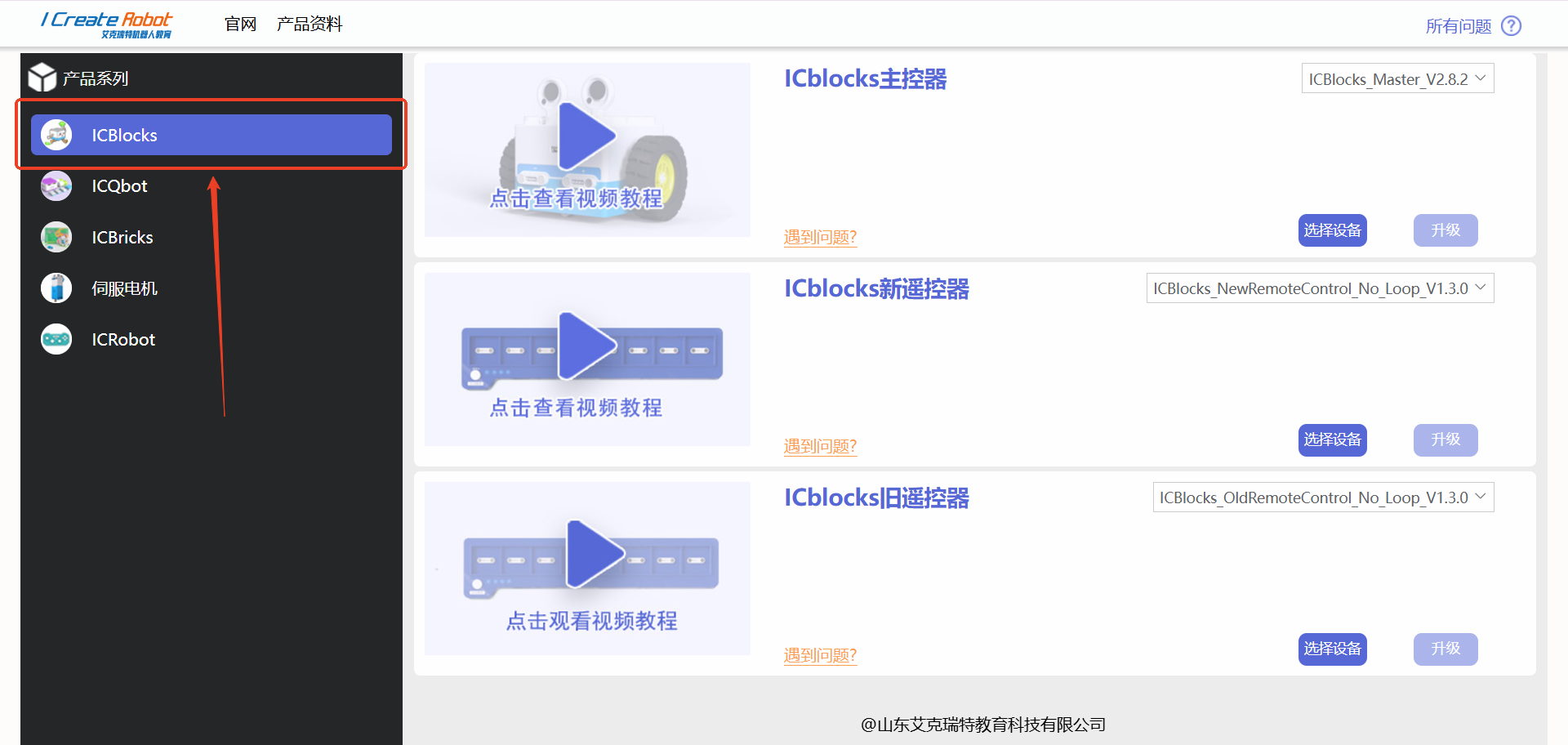

④ Open the firmware upgrade platform in Chrome or Microsoft Edge, and select the KIDZBlocks Series from the left panel. |
|
|
⑤ Locate the Boxy Robot on the right panel. Expand the dropdown list to view available firmware upgrades. |
⑥ Click “Connect Device”. If no device is detected, check the connections or ensure the steps above were correctly followed. Once connected, select the device. |
|
|

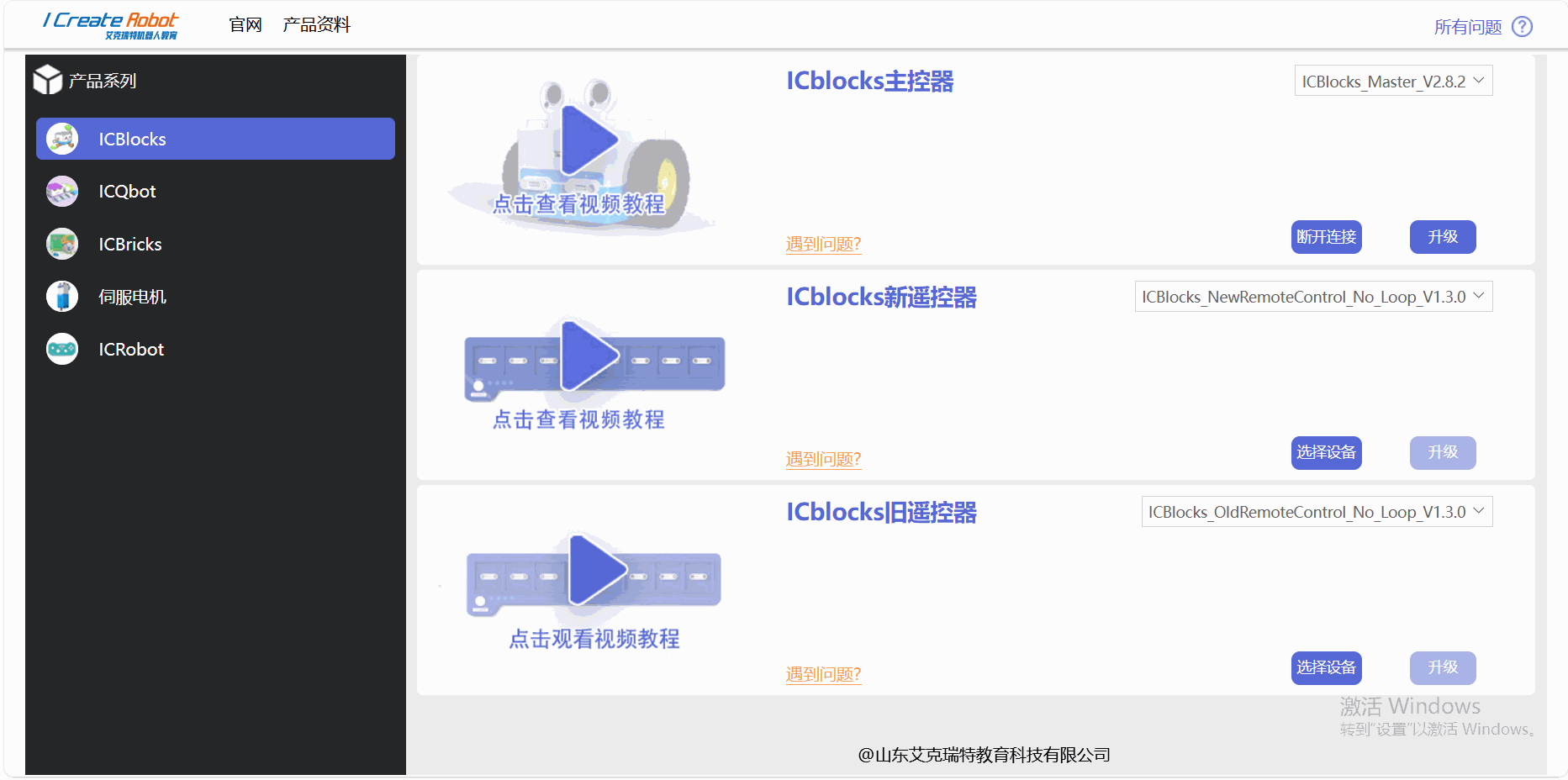

⑦ Click “Upgrade” and wait for the page to display “Upgrade Successful.” Observe the blue indicator light on the KIDZLink 2.0 for confirmation of completion. |

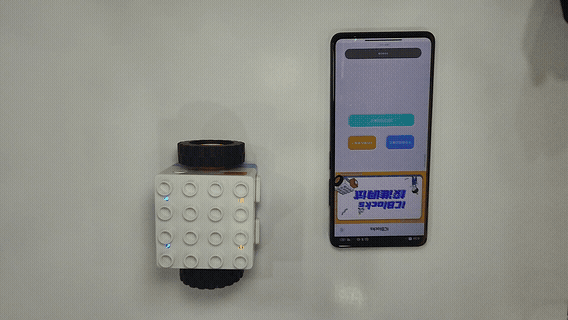

⑧ Connect the upgraded Boxy Robot to the KIDZBlocks Calibration and Debugging Tool. |
|
|

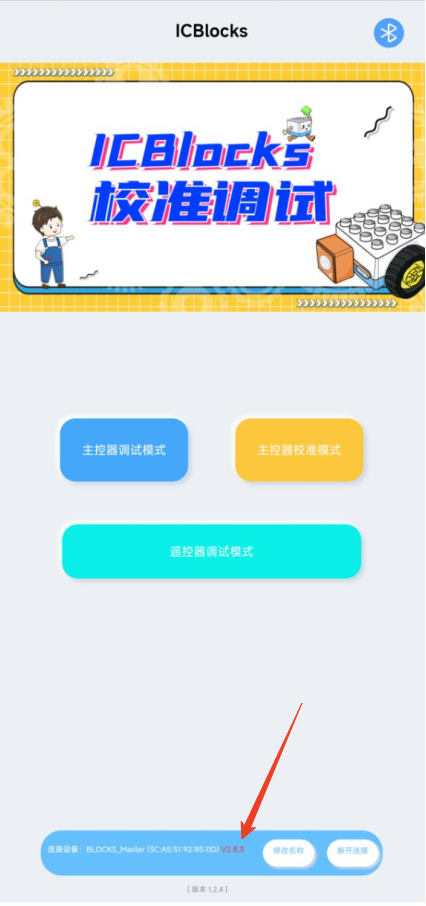

⑨ On the Home Interface of the software, check the device connection status at the bottom to verify the firmware version. Firmware versions below 2.8.3 do not support software version checking. |
